Critical defect analysis in heat exchangers

The importance of early detection and effective maintenance cannot be overstated in prolonging heat exchanger life and maintaining operational excellence. As industrial processes become increasingly demanding, understanding and addressing these defects becomes paramount for facility operators and maintenance personnel. This article explores the nature of common defects, examines state of the art detection methods, and outlines best practices for defect prevention, all crucial elements in ensuring the reliability and longevity of heat exchanger systems.

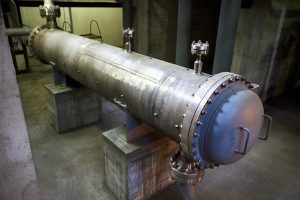

Types of defects in heat exchangers

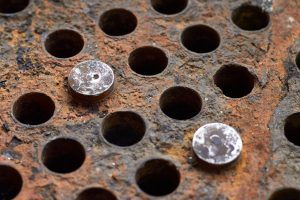

Tube leaks
Tube leaks represent one of the most prevalent and challenging issues facing heat exchanger operations. Corrosion stands as a primary catalyst for these failures, occurring through complex chemical interactions between the tube material and its operating environment. This deterioration can manifest in multiple forms, from uniform thinning across tube surfaces to more localized damage such as pitting, each presenting unique challenges to system integrity. The impact of erosion also plays a significant role, particularly in systems with high-velocity fluid flows. These conditions create particular vulnerability at bends and junctions, where flow patterns can accelerate material loss and create localized weak points in the system.

Material fatigue introduces another critical dimension to tube leak development. The repeated thermal and mechanical cycling inherent in many industrial processes places significant stress on tube materials. This becomes particularly pronounced in operations involving frequent start-stop conditions or substantial temperature fluctuations. The consequences of tube leaks extend far beyond simple operational inefficiency. Cross-contamination between process fluids can compromise product quality and create potential environmental hazards. Moreover, the insidious nature of small leaks often results in gradual system degradation that may go unnoticed until more catastrophic failures occur.

Cracks and fractures
The development of cracks and fractures in heat exchanger systems often stems from a complex interplay of thermal stress, pressure variations, and material fatigue. Thermal stress plays a particularly significant role, as rapid temperature fluctuations force materials through cycles of expansion and contraction. Over time, these thermal cycles can initiate and propagate stress cracks, especially in areas of geometric discontinuity or pre-existing material weakness. The presence of manufacturing defects, such as inclusions or voids within materials, can serve as initiation points for crack development under operational conditions.

Pressure variations within the system introduce additional complexities to crack formation and propagation. Sudden pressure changes or cyclical loading can exacerbate existing weaknesses, leading to accelerated crack growth. Power generation facilities have demonstrated particular success in managing these issues through comprehensive monitoring of thermal cycling parameters and implementation of regular material inspections during scheduled maintenance periods. This proactive approach has proven effective in identifying potential crack formation before it can develop into system-critical failures.

Structural deformations
Mechanical stresses and excessive pressure conditions can lead to significant structural deformations within heat exchanger systems. These issues often arise from a combination of factors, including incorrect installation procedures, poor alignment during assembly, or unbalanced load distribution during operation. The consequences of such deformations extend beyond immediate structural concerns, often resulting in reduced heat transfer efficiency and accelerated wear on affected components.

Operating conditions that exceed design parameters present particular risks for structural integrity. Pressure surges, whether from system malfunctions or operational oversights, can cause immediate and severe distortion of critical components. A notable example from refinery operations illustrated this risk when a sudden pressure spike resulted in significant tube bundle deformation. The subsequent implementation of advanced pressure control systems proved essential in stabilizing operating conditions and preventing similar incidents, highlighting the importance of proper pressure management in maintaining structural integrity.

Fouling and deposits
The accumulation of fouling and deposits represents a persistent challenge in heat exchanger operation, significantly impacting system performance through increased thermal resistance and reduced flow capacity. Particulate fouling occurs when solid particles carried within process fluids settle and accumulate on heat transfer surfaces, creating barriers to efficient thermal exchange. This process can be particularly problematic in systems handling unfiltered or partially filtered process streams, where particulate loading may be significant.

Scale formation, particularly in systems utilizing hard water sources, presents another significant challenge to operational efficiency. Chemical residues accumulate over time, forming dense deposits that not only impede heat transfer but also restrict fluid flow through critical passages. The presence of biological fouling adds another dimension to this challenge, particularly in water-cooled systems where conditions may promote microorganism growth. These biofilms can rapidly develop into substantial barriers to heat transfer, significantly reducing system efficiency. A water treatment facility’s experience with scale formation demonstrated the importance of comprehensive mitigation strategies, including both mechanical cleaning protocols and enhanced water treatment systems, in maintaining optimal performance.

Seal and gasket failures
The integrity of seals and gaskets plays a crucial role in maintaining heat exchanger efficiency and preventing fluid leakage. Material selection represents a critical factor in seal performance, as inappropriate choices can lead to accelerated degradation under operating conditions. The chemical compatibility between seal materials and process fluids must be carefully evaluated to ensure long-term reliability. Additionally, the natural aging process and wear from normal operation contribute to gradual deterioration of these components, necessitating regular inspection and replacement schedules.

Experience across various industries has demonstrated that the selection of high-quality, chemically resistant gasket materials, combined with precise installation procedures, significantly reduces the incidence of seal failures. Proper torque application during installation and regular monitoring of seal condition have proven essential in maintaining system integrity. Furthermore, the implementation of preventive maintenance programs that include scheduled seal replacement has shown considerable success in reducing unexpected failures and associated downtime.

Advanced methods for defect detection and analysis

Non-destructive testing techniques
The field of non-destructive testing has evolved significantly, offering increasingly sophisticated methods for defect detection and analysis. Eddy Current Testing (ECT) has emerged as a particularly valuable tool in tube inspection, utilizing electromagnetic fields to detect variations in material properties that might indicate the presence of defects. This technique proves especially effective in identifying early-stage corrosion and wall thinning, allowing maintenance teams to address potential failures before they become critical. A petrochemical plant’s successful implementation of ECT demonstrated its value in identifying incipient corrosion, enabling proactive maintenance that prevented costly system failures.

Dye Penetrant Inspection (DPI) provides another valuable approach to surface defect detection, offering a cost-effective method for identifying surface-breaking flaws. The process involves applying a specialized dye that penetrates surface discontinuities, followed by careful removal of excess material and application of a developer that draws the retained dye out to create visible indications of defects. While limited to surface-level examination, this technique proves particularly valuable in identifying crack initiation sites and other surface anomalies that might develop into more serious issues.

Advanced imaging and analysis
Radiographic Testing (RT) represents one of the most comprehensive methods for internal defect detection, utilizing X-rays or gamma rays to create detailed images of internal structures. This technique proves invaluable in aerospace applications, where internal defects could have catastrophic consequences. The ability to detect voids, inclusions, and internal cracks without component disassembly makes RT an essential tool in comprehensive inspection programs, despite its relatively high cost and time requirements.
Ultrasonic Testing (UT) complements other inspection methods by providing detailed information about material thickness and subsurface defects. The technique employs high-frequency sound waves that travel through the material, with variations in the returned signal indicating the presence of flaws or thickness variations. The accuracy and non-destructive nature of UT make it particularly valuable for monitoring wall thickness in critical components, though the complexity of signal interpretation necessitates highly trained operators.

Best practices for defect prevention

Comprehensive monitoring and inspection programs
The foundation of effective defect prevention lies in establishing comprehensive monitoring and inspection protocols. Modern facilities implement sophisticated condition-based monitoring systems that continuously track critical operational parameters, including temperature, pressure, and vibration patterns. These systems provide real-time data that enables early detection of developing issues before they escalate into system failures. The integration of advanced inspection techniques, including Eddy Current Testing, Radiographic Testing, and Ultrasonic Testing, provides detailed insights into component condition and helps identify hidden defects that might otherwise go unnoticed. Experience from power generation facilities has demonstrated the value of integrated monitoring approaches. By implementing comprehensive vibration monitoring systems, facilities have successfully identified early indicators of tube fatigue, enabling proactive maintenance that significantly reduced repair costs and prevented unexpected failures. The success of these programs relies heavily on consistent data collection and analysis, combined with clear protocols for responding to identified anomalies.

Material selection and quality control
The selection of appropriate materials and implementation of rigorous quality control measures play crucial roles in preventing defect development. Material compatibility with process fluids and operating conditions must be carefully evaluated during the design phase. The use of corrosion-resistant materials, such as specialized stainless steels, titanium alloys, and advanced composites, has proven effective in extending equipment life and reducing maintenance requirements. Additionally, the application of protective coatings, including advanced nano-coatings and specialized epoxy systems, provides additional protection against corrosive environments and erosive conditions. Quality control during manufacturing and installation phases proves equally important in preventing defect development. Strict adherence to industry standards and specifications helps ensure component integrity from the outset. Regular inspection of incoming materials and careful monitoring of fabrication processes help identify potential issues before components enter service. The implementation of comprehensive documentation systems enables tracking of material properties and manufacturing parameters, facilitating future troubleshooting and maintenance planning.

Operational management and training
Maintaining stable operating conditions represents a critical aspect of defect prevention. Facilities must implement careful procedures for system startup and shutdown, avoiding rapid temperature changes that could induce thermal stress. Pressure control systems play a vital role in preventing damage from pressure surges, while regular calibration of instrumentation ensures accurate monitoring of operating parameters. The development of detailed operating procedures, combined with comprehensive training programs, helps ensure consistent application of best practices across all operational phases.

The importance of personnel training cannot be overstated in maintaining system integrity. Regular workshops and training sessions keep maintenance staff current with new technologies and inspection techniques. Simulation-based training provides valuable hands-on experience in identifying and responding to common defect scenarios. The implementation of certification programs for specialized inspection techniques ensures maintenance personnel possess the necessary skills for effective system monitoring and maintenance.

Conclusion

Effective management of defects in heat exchanger systems requires a comprehensive approach combining advanced detection methods, preventive maintenance strategies, and thorough training programs. Success in this area demands continuous attention to operational parameters, regular inspection and monitoring, and prompt response to identified issues. As industrial processes continue to evolve and demand higher performance from heat exchanger systems, the importance of effective defect management will only increase. Organizations must remain committed to advancing their defect management practices through continuous improvement and knowledge sharing. The implementation of comprehensive monitoring systems, combined with advanced inspection techniques and well-trained personnel, provides the foundation for maintaining system reliability and operational efficiency. By following these best practices and remaining vigilant in their application, facilities can significantly reduce the impact of defects on their operations while extending equipment life and maintaining optimal performance levels.
