Article by Mike Prevost (VP Specialty Services – Ohmstede Industrial Services, Inc.) and Scott Hamilton (CEO and Founder – Hex Technology)

By following guidelines spelled out in ASME PCC-1, utilizing certified and experienced bolting personnel, and implementing some shared best practices based on years of field experience, this article provides useful insights and suggestions for consideration related to minimizing leaks on heat exchangers.

Many end users assign a level of criticality to their bolted flange joint assemblies. A common practice is to separate flange joints into three classifications: Mild, intermediate, and critical service.
Because of the degree of temperature and pressure involved with heat exchangers, the lowest rating they’ll typically be assigned is intermediate. Indeed, most exchangers qualify as critical. Despite this classification and the increased attention that logically should follow it, heat exchangers are a common source of flange leaks. How can heat exchanger joints be so important, yet so troublesome?
First, let’s examine the situation through the lens of RiskBased Inspection (RBI). Under this approach, a connection is deemed more or less critical depending on two factors:
  1. Probability of Failure (PoF), or the likelihood of leaking
  2. Consequence of Failure (CoF), of the potential for harm/damage if a leak occurs, or if the equipment is taken offline
High temperatures, pressures, and low gasket stresses are typically associated with heat exchangers. Therefore, the CoF on these joints is higher than what we expect on typical B16.5 flanges.

Teamwork with an inherent burden on assemblers

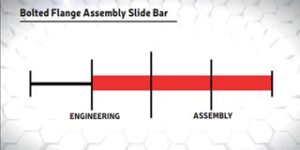

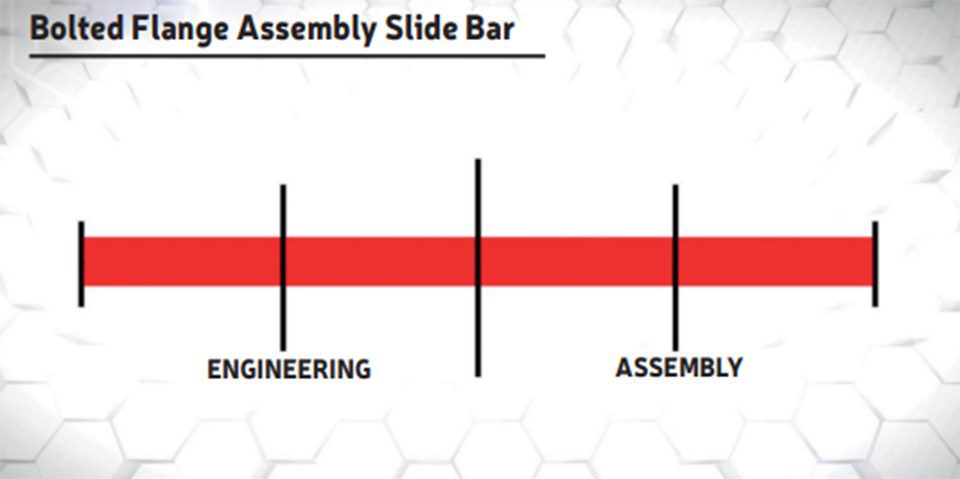

Figure 2: Why engineering and assembly are both needed.
Figure 2: Why engineering and assembly are both needed.

Joint assembly is a team effort that involves many more people than just the crew putting their hands on the flange itself. The two groups of people with the most influence on the quality of the outcome are Engineering and Assembly teams.

Let’s imagine that these two teams were working on the joint in a classroom setting. Each can earn up to 50 points. Working together, they need to score 80% or better to achieve a leak-free seal.
This design problem happens because exchanger design codes don’t take ASME PCC-1 Appendix O calculations into the equation. The discussion of gasket stress vs. bolt stress could be the basis of an entirely different article, but some key points are:
  1. The bolting industry has been trained for decades to think bolt stress is more critical than gasket stress. Improper or unbalanced gasket load is responsible for the great majority of all flange leaks.
  2. Appendix O is a comparatively new way to calculate bolt load based on the resulting gasket stress.
  3. Because Appendix O of PCC-1 has only been around for 10 years, not all design codes have been updated recently or thoroughly enough to use it.
Bottom line: Even with excellently planned engineering, joints around heat exchangers are under-designed. To return to our classroom analogy, imagine that the engineers were constrained to only score 40 or even 30 out of 50.
The result: Assemblers have to score near-perfect on their responsibilities for the team to achieve a passing score (and, thus, for the flange to be leak-free).
A typical response to this situation is for engineering to attempt to make up for the deficit through lengthier procedures. However, here is a truth all engineers and maintenance leadership must keep in mind: You cannot out-procedure a lack of training.
The way to ensure proper assembly is not to hand your craft lengthier documents – which inherently makes them harder to read and therefore easier to ignore.
Instead, the need is for a program that teaches assemblers what good, bad, and ugly looks like in the field, verifying their competency through hands-on techniques.

What’s a good heat exchanger joint assembly process?

There are several key factors to avoid flange joint leaks. First is understanding the temperature, pressure, and the effect of the product properties of the process on the bolted flange joints, and then selecting the suitable materials and gaskets.
Before taking the exchanger(s) out of service, identify any areas of concern. Consider whether the existing bolts, nuts, and gaskets were the best selection based on the heat exchanger’s temperature, pressure, and service during this evaluation stage. If the components meet the required criteria, then the next step is disassembly.
Before beginning disassembly, perform a visual inspection for signs of leakage that indicate pre-existing issues. Upon disassembly, it is good to note the position of the existing gasket and any signs of erosion or pitting on the flange face surface. It is also a good practice to verify the flatness of the mating surfaces. Many issues can be prevented by following the recommendations set forth in ASME PCC-1 (2019) for both disassembly and re-assembly.
Once the gasket surface is verified, a crew’s next step is to verify they have the correct gasket, bolts, nuts, and (if applicable) washers, along with the correct lubricant.

The right amount of gasket compression

Figure 3: A = Bolt (spring) stretch; B = Opposite force pulling flanges (spring) together.
Figure 3: A = Bolt (spring) stretch; B = Opposite force pulling flanges (spring) together.

Bolts (a.k.a. studs) have an elastic property, which allows them to work as springs to compress the flanges together on the gasket. When load is applied, it stretches the bolt, which then tries to return to its original length. This creates compressive force across the joint members. See how a fastener acts as a spring to compress the gasket between two flanges in the diagram below (see figure 3).

Bolted flange joint assemblies create a “Clamping Force” across the joint surface that applies gasket stress or compression sufficient to maintain a seal during normal operating conditions.

Figure 4: The difference between torque and tension.
Figure 4: The difference between torque and tension.

Torqueing and tensioning are two different methods for achieving an axial load on the bolt. Torqueing uses the turning of the nut to stretch the bolt. Tensioning uses different tooling that stretches the bolt without requiring the turning of the nut to achieve the bolt load, as illustrated above (see figure 4).

Proper lubrication is severely undervalued in bolted assembly. Perhaps no other practice is so simple yet wields so much influence over the final result. A sufficient amount of lubrication reduces friction and allows the applied bolt load to generate better clamping force. Meanwhile, improper lubrication (or having no lubrication at all) creates an additional variable detrimental to the final result since most engineering calculations for bolt load assume proper lubrication. Additionally, proper lubrication can reduce the potential for “galling,” or the fasteners becoming stuck or stripped in later disassembly.

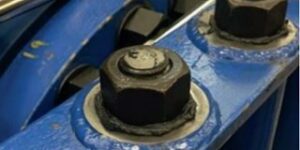

The image below (see figure 5) shows a proper amount of lubrication applied to a bolt. Note how a bead of lube “squishes” out from beneath the hand-tightened nut. An assembler should see such a bead after hand-tightening if they have applied lubricant correctly.
Figure 5: Proper lubrication.
Figure 5: Proper lubrication.

Gasket selection is also essential. A Double Jacketed gasket has been the staple for heat exchanger gaskets for years. However, we have seen that Kammprofile gaskets have produced better results in most cases. Manipulating the area of the Kammprofile gaskets allows for proper gasket stress. By following the ASME PCC-1 (Appendix A) to train bolting personnel, owners can dramatically improve the likelihood of achieving leak-free exchangers.

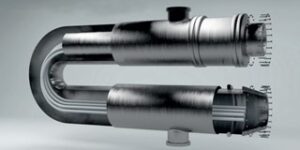

Hairpin Heat Exchangers

Bolted flange joints on Hairpins are often not so well designed as they ought to be and are prone to leakage as a result. Manufacturers often prescribe higher torque values to make up for this deficit.

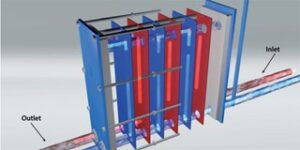

Plate Heat Exchangers (PHE)

Plate Heat Exchangers
Plate Heat Exchangers

Plate heat exchangers require rubber gaskets, which cannot withstand the amount of gasket stress that a Kammprofile or a Spiral Wound Gasket (SWG) can withstand.

These rubber gaskets are relatively easy to over-compress; and as a result, it is easy to damage them. Therefore, assembly teams must obtain proper torque values from the manufacturer and work across the body of the exchanger in a crisscrossed pattern.

Hairpin Heat Exchangers

Hairpin Heat Exchangers
Hairpin Heat Exchangers

Bolted flange joints on Hairpins are often not so well designed as they ought to be and are prone to leakage as a result.

Manufacturers often prescribe higher torque values to make up for this deficit.

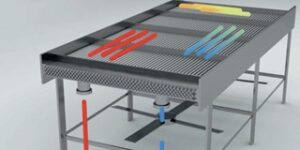

Air-Cooled (a.k.a. “Fin Fan”) Heat Exchangers

Air-Cooled (a.k.a. “Fin Fan”) Heat Exchangers
Air-Cooled (a.k.a. “Fin Fan”) Heat Exchangers

Typical maintenance on an Air-Cooled Heat Exchanger includes removing plugs, replacing them, and then reinstalling them into the header box. This process is trickier than it sounds.

The #1 rule for assemblers here should be: Do NOT use an impact wrench for assembly or disassembly. It is very easy to strip threads on these units, and experience proves they are more prone to galling. Proper lubrication should be considered a must on all assemblies.

However, it is especially crucial on these units due to the potential for galling.

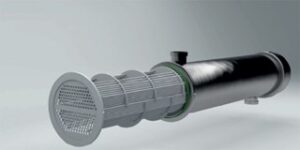

Shell and Tube sheet Heat Exchangers

Shell and Tube sheet configurations are what assemblers see the most in the field.
There are three key measurements teams need to be aware of when assessing these units:
  1. Flange circumferential variation (T1), or the “rollout” on a flange. This refers to variations in height around the flange sealing surface.
  2. Radial variation tolerance (T2),or what’s commonly referred to as “high-low.” T2 is the difference in height from the inside to the outside of a sealing surface.
  3. Pass partition tolerance, which refers to height differences on any of the pass partitions within the flange.
Shell and Tube sheet Heat Exchangers
Shell and Tube sheet Heat Exchangers

There are multiple complex methods for measuring these variations. However, the differentials are so small that it is difficult, if not impossible, to determine if the issue is within or outside of the accepted range with the naked eye. Therefore, if an assembly crew has any reason to believe there’s an issue with these surfaces, the best practice is to speak with a supervisor and bring in a machining tool for a proper analysis.

Conclusion

Flange joint connections are dynamic, but with proper understanding, management, and application, there are many opportunities to achieve leak-free performance on exchangers. By following the ASME PCC-1 guidelines and using qualified bolting personnel, the odds of achieving leak-free exchangers improve dramatically.
From a technical and application perspective, the authors and their respective companies remain committed to providing the support necessary to help avoid leaks. We invite readers to receive free training on Heat Exchanger Assembly through Hex Technology’s online learning platform. Sign up at hextechnology.com and to discover how they can manage all bolted flange joint assemblies utilizing Ohmstede Industrial Services.
