With around 40 years’ experience of designing and installing heat exchangers – whether as part of a brand-new production line or as an upgrade or replacement to an existing unit – our engineers and sales staff have encountered a wide range of issues on sites. Here are ten of the most common mistakes that can occur as a result of poorly-specified or badly-installed heat exchanger systems – and, most importantly, how you can avoid them on your next project.
Article By Matt Hale, International Sales & Marketing Director, HRS Heat Exchangers

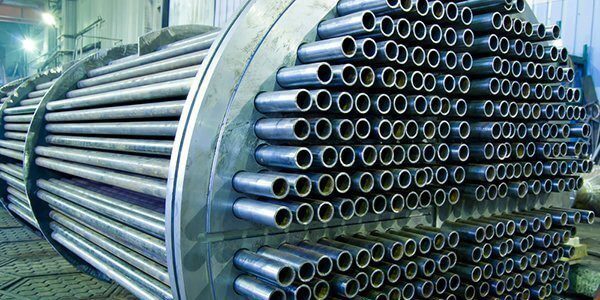

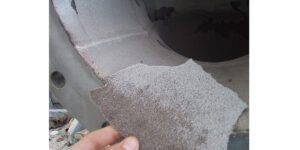

1. Excessive fouling
The consequences of excessive fouling within a heat exchanger can range from minor inconvenience (a greater need for regular cleaning) to catastrophic (material failure of industrial heat exchangers caused by chemical fouling and material corrosion). Excessive fouling during operation can also reduce operational efficiency and increase energy consumption.
There can be many reasons behind this. Food products containing high levels of protein can be a particular cause of heat exchanger fouling, as can those containing certain starches or enzymes. In waste management situations, fouling from limescale, struvite and vivanite can be especially problematic.
The best solution is to avoid excessive fouling in the first place by choosing the right type of heat exchanger for your application. Scraped surface or corrugated tube designs reduce fouling by increasing turbulence in the tube. Maintaining the correct temperature range will also help to reduce the problem, and where particular problems are anticipated, additional chemical treatment, such as acid dosing, may be required.
2. Wrong material choice
Bear in mind that cheaper isn’t necessarily best. The problems caused by specifying the wrong type of material for your heat exchanger range from the need for additional cleaning, through to catastrophic failure of the unit.
For example, although carbon steel is cheaper than stainless steel and easier to work with – making it a popular choice for those on a budget – it is also more vulnerable to corrosion and chemical reaction. Thicker tube walls are required compared to stainless steel, which increases the weight of comparable heat exchanger units and may add to associated costs, such as concrete bases and mounting brackets. Furthermore, carbon steel is brittle and while it may have a higher thermal conductivity than other materials, this can rapidly be degraded by the build-up of corrosion or fouling layers, reducing its service life.
If possible, opt for a material which is both hygienic and hard-wearing, but which also provides good thermal characteristics in the design of heat exchanger that you are considering, such as stainless steel.
3. Incorrect pressure drop
Pressure problems usually occur when the pressure drop in the heat exchanger is higher than the design parameters. In the worst case scenario this can lead to leaks, contamination or heat exchanger failure.
One reason for an increase in the pressure drop might be a change in raw material specification (for example, switching ingredient suppliers). To counteract this, you should always request full details about any new products from your suppliers and, if necessary, ask your heat exchanger supplier to test them before use. This will ensure that any new heat exchangers are correctly specified, and will also help to prevent problems when switching products or ingredients.
4. Poor location
We have encountered heat exchangers crammed into corners, obstructed by pipework or other equipment, or fed by excessively long or complex pipework. While none of these issues will necessarily affect the performance or working life of the heat exchanger itself, if it is inconvenient to clean and service, then such routine tasks may get overlooked or extended beyond the recommended intervals, which can in turn lead to problems.
If you are tight on space, then ensure you specify a heat exchanger suitable for a small footprint. For example, corrugated tube designs are more efficient and require less space than a smooth-tube unit with the same capacity. This means that they can often be housed in smaller spaces or novel locations, such as a specially constructed mezzanine, while still allowing full access for cleaning and maintenance.
5. Insufficient capacity
One option may be to choose a modular solution, so that additional units can be added if and when extra capacity is required. Although allowing for the additional space and infrastructure may incur some cost, this is likely to be less than a much larger over-specified unit, and will save money in the long term when expansion is required.
6. Product damage
If a pump fails elsewhere in the system, material may remain too long in the heat exchanger, becoming too hot or too cold. This can result not only in product damage, but can also have additional effects on the equipment.
A well-designed heat exchanger should therefore include failsafes to prevent damage from occurring in the event of a system failure elsewhere in the production line – for example, heating coils or a diversion system to prevent chilled products from freezing in the event of pump failure. It is also important to make sure that heat exchanger equipment is included within any monitoring and alarm systems.
8. Insufficient cleaning or maintenance
Shortcuts in maintenance can not only affect heat exchanger performance, they can also affect the safety of food and pharmaceutical products; for example, by allowing contamination to occur through leakage. In the worst case, insufficient maintenance or inspection could lead to a failure to spot cracks or corrosion, resulting in major issues which could have been prevented.
Any good heat exchanger design should therefore make routine checking and cleaning as quick and hassle-free as possible.
9. Poor energy efficiency
Using a design which reuses (or ‘regenerates’) this heat will reduce overall energy and running costs. For example, a pasteurisation and cooling system could use the heat removed from the product during the cooling phase to supplement the heat input used for pasteurisation. Where two low to medium viscosity products need heating and cooling, it may even be possible to use a product-to-product heat exchanger, removing the additional costs and complications associated with a service fluid system.
10. Incorrect design parameters
It may appear as if the heat exchanger designers and engineers require an unnecessary amount of information, but this is only because they have the experience to know what variables will affect the performance and longevity of such an important asset – so trust them, and provide as much information as you can.
Any uncertainty should be flagged up immediately; rather than guessing, it is much better to measure the required parameters, even if this involves sending product off for third party analysis. Failure to obtain the correct information will result in a heat exchanger which, at best, is inefficient and, at worst, inoperable.
In some cases, a heat exchanger is used for something different to its original design. For example, a product recipe may be changed, a new product may be introduced or the characteristics of a waste stream are altered as a result of different processes elsewhere in the production line. Whenever any changes are made, the heat exchanger supplier should be consulted as simple adjustments or modifications will often help to maintain optimum heat exchanger performance.
This is by no means an exhaustive list, and the severity of almost all of the issues listed above can range from mild inconvenience or extra costs, through to severe and catastrophic equipment failure. Safety must always be the prime concern and any equipment which is potentially unsafe should not be used until it has been checked and certified by a competent authority.
For less serious issues, if you find that processing is taking longer than anticipated, or you are spending longer than expected cleaning your heat exchanger, it may be time to get a second opinion.
