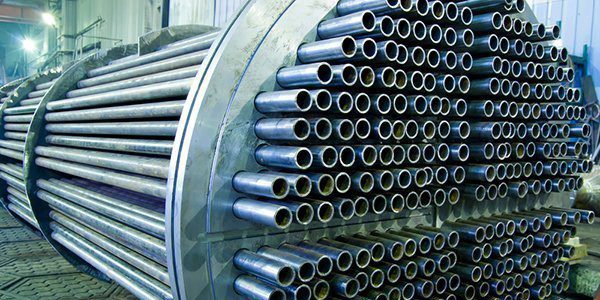

^ Designing and installing heat exchangers

Article By Matt Hale, International Sales & Marketing Director, HRS Heat Exchangers
___

1. Excessive fouling

The consequences of excessive fouling within a heat exchanger can range from minor inconvenience (a greater need for regular cleaning) to catastrophic (material failure of industrial heat exchangers caused by chemical fouling and material corrosion). Excessive fouling during operation can also reduce operational efficiency and increase energy consumption.

There can be many reasons behind this. Food products containing high levels of protein can be a particular cause of heat exchanger fouling, as can those containing certain starches or enzymes. In waste management situations, fouling from limescale, struvite and vivanite can be especially problematic.

The best solution is to avoid excessive fouling in the first place by choosing the right type of heat exchanger for your application. Scraped surface or corrugated tube designs reduce fouling by increasing turbulence in the tube. Maintaining the correct temperature range will also help to reduce the problem, and where particular problems are anticipated, additional chemical treatment, such as acid dosing, may be required.

2. Wrong material choice

Bear in mind that cheaper isn’t necessarily best. The problems caused by specifying the wrong type of material for your heat exchanger range from the need for additional cleaning, through to catastrophic failure of the unit.

For example, although carbon steel is cheaper than stainless steel and easier to work with – making it a popular choice for those on a budget – it is also more vulnerable to corrosion and chemical reaction. Thicker tube walls are required compared to stainless steel, which increases the weight of comparable heat exchanger units and may add to associated costs, such as concrete bases and mounting brackets. Furthermore, carbon steel is brittle and while it may have a higher thermal conductivity than other materials, this can rapidly be degraded by the build-up of corrosion or fouling layers, reducing its service life.

If possible, opt for a material which is both hygienic and hard-wearing, but which also provides good thermal characteristics in the design of heat exchanger that you are considering, such as stainless steel.

3. Incorrect pressure drop

Pressure problems usually occur when the pressure drop in the heat exchanger is higher than the design parameters. In the worst case scenario this can lead to leaks, contamination or heat exchanger failure.

One reason for an increase in the pressure drop might be a change in raw material specification (for example, switching ingredient suppliers). To counteract this, you should always request full details about any new products from your suppliers and, if necessary, ask your heat exchanger supplier to test them before use. This will ensure that any new heat exchangers are correctly specified, and will also help to prevent problems when switching products or ingredients.

4. Poor location

We have encountered heat exchangers crammed into corners, obstructed by pipework or other equipment, or fed by excessively long or complex pipework. While none of these issues will necessarily affect the performance or working life of the heat exchanger itself, if it is inconvenient to clean and service, then such routine tasks may get overlooked or extended beyond the recommended intervals, which can in turn lead to problems.

If you are tight on space, then ensure you specify a heat exchanger suitable for a small footprint. For example, corrugated tube designs are more efficient and require less space than a smooth-tube unit with the same capacity. This means that they can often be housed in smaller spaces or novel locations, such as a specially constructed mezzanine, while still allowing full access for cleaning and maintenance.

5. Insufficient capacity

While it may be tempting to invest in a smaller unit to save money, this can prove to be a false economy. Specifying a heat exchanger which is not large enough to cope with the maximum volume or processing capacity can result in extended running hours or, in a worst-case scenario, having to turn business away.

One option may be to choose a modular solution, so that additional units can be added if and when extra capacity is required. Although allowing for the additional space and infrastructure may incur some cost, this is likely to be less than a much larger over-specified unit, and will save money in the long term when expansion is required.

6. Product damage

Inappropriate product handling can easily affect key quality parameters, such as taste, appearance or viscosity. Such issues can occur from thermal or physical treatment, or both. Common examples include rough handling of cream causing curdling; pizza sauce losing its viscosity so that it falls off the pizza; fats and spreads becoming demulsified; and fruit juices losing their fresh taste when pasteurised. All of these effects, and more, could have been prevented by using the right heat exchanger in the first place. For example, not only are scraped-surface heat exchangers good at preventing fouling with viscous products, they can also handle sauces more gently than a turbulent tubular design, retaining the all-important product characteristics.

7. Lack of backup or safety systems

If a pump fails elsewhere in the system, material may remain too long in the heat exchanger, becoming too hot or too cold. This can result not only in product damage, but can also have additional effects on the equipment.

A well-designed heat exchanger should therefore include failsafes to prevent damage from occurring in the event of a system failure elsewhere in the production line – for example, heating coils or a diversion system to prevent chilled products from freezing in the event of pump failure. It is also important to make sure that heat exchanger equipment is included within any monitoring and alarm systems.
