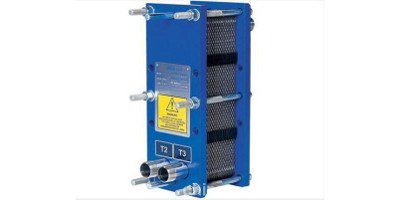

The removable plate heat exchanger is mainly composed of a heat transfer plate, sealing gasket, pressure plate at both ends, clamping bolt, bracket, flange or bushing, and ground foot. Heat transfer plate is the main component of the heat exchanger. Generally, a corrugated heat transfer plate is made of herringbone. According to the different fluid medium, the material of the heat transfer plate is different. Most of them are made of stainless steel and titanium. The sealing gasket of plate heat exchanger mainly plays a sealing role between heat exchanger plates.
The removable plate heat exchanger is made of many stamped corrugated sheets sealed by gaskets at a certain interval and overlapped by frame and compression screw. At the same time, the cold and hot fluids are separated reasonably to flow in the channels on both sides of each plate, and heat exchange is carried out through the plate.
The removable plate heat exchanger is a new type of energy-saving heat exchange device. It has the advantages of high heat transfer efficiency, compact structure, small floor area, simple operation, easy cleaning, disassembly and maintenance, easy to change the heat exchange area or process combination.
