TOffeeAM: robust fluid topology optimization for high-temperature heat exchangers

Advanced nuclear technologies (ANTs) such as small modular reactors (SMRs) and advanced modular reactors (AMRs) have the potential to support decarbonization beyond just supplying low-carbon electricity. However, their higher operating temperatures also mean that in order to successfully exploit these broader uses of ANTs, novel heat management and extraction technologies will be necessary. One very promising technology which can offer a step-change in the performance of thermo-fluid systems is fluid topology optimization (FTO or TO).

By Thomas Rees – Lead Engineer, TOffeeAM

In this project, TO was used to generatively design a heat exchanger which can be used downstream of a high-temperature gas reactor for hydrogen cogeneration.
The TOffee generative design software was used to create two different heat exchanger designs – one in cross-flow and one in counter-flow.
The performance of these heat exchangers was estimated using a high-fidelity conjugate heat transfer analysis method which models both the fluid flow and heat transfer through the solid parts of the heat exchanger. In these simulations, the working fluids were helium/helium, and the heat exchanger material was a high-temperature nickel alloy.
The results of these simulations showed that the performance of the TO-designed PCHX was quantifiably better than traditional designs, with up to 8.5% increased heat transfer at the cost of only 4% increased pressure losses.

The application

The application chosen for this design was a heat exchanger for hydrogen cogeneration downstream of a high-temperature gas reactor’s main loop. These heat exchangers must be able to handle very high temperature and high pressure flows of gasses such as carbon dioxide or helium.
Due to the publication of data from experimental reactors (Kunitomi et al.), such as the JAEA gas reactor (HTTR), the pressure and heat transfer requirements for these heat exchangers are well known.
In particular, we chose to design a printed circuit heat exchanger design (see Figure 1: Printed circuit heat exchanger designs).
PCHXs are formed with two media (hot and cold) on opposite sides of a diffusion bonded plate. The flow patterns for each of the fluids are optimized for the specific heat transfer and pressure loss requirements. Each plate is then stacked into a sandwich and diffusion bonded together. In addition to diffusion bonding, TOffeeAM has in the past created concept designs for PCHX which can be manufactured using additive manufacturing techniques.

Topology optimization

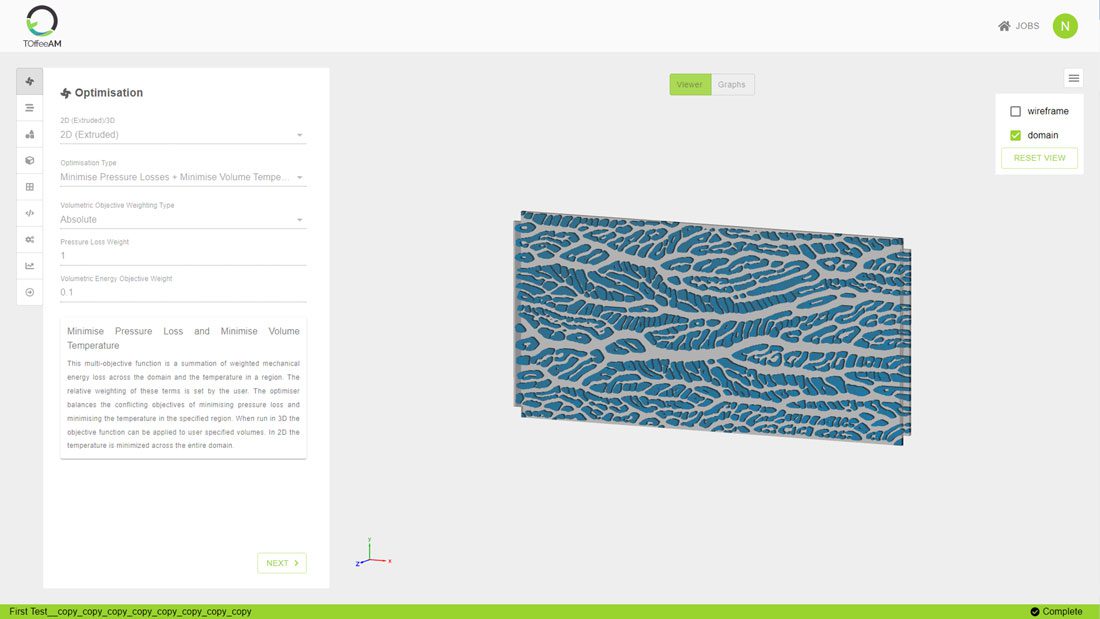

We used the TOffee cloud platform to optimize the hot and cold layers of a printed circuit heat exchanger (Figure 2). As inputs, TOffee takes a design domain and fluid boundary conditions (flow rates, pressures, and temperatures). In addition to these two physical inputs, the user also specifies the optimization parameters: weights for each of the two objective functions (heat transfer and pressure loss).
The ratio of these weights tells the optimizer how exactly to prioritize the competing objectives of maximizing pressure loss while minimizing heat transfer.

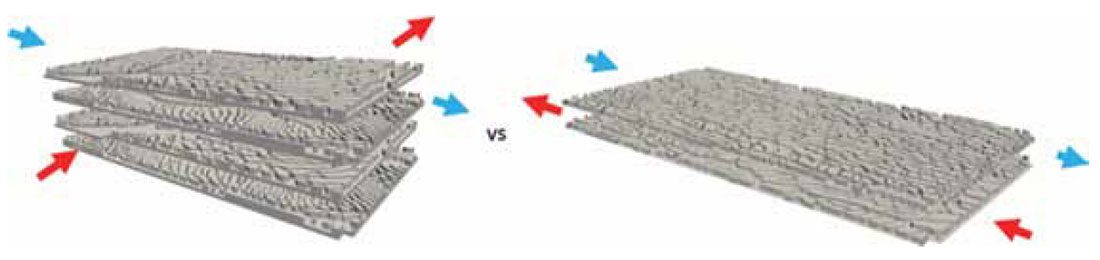

One of the advantages of TOffee is the ease (and hence speed) at which the user can create new optimization jobs. This, combined with the relative speed of the optimization process itself (only a few hours per job) means it is easy for the user to quickly iterate through designs. To illustrate this point, for the current case, we generated two different heat exchanger designs – one in counterflow and one in crossflow. Both designs only took a few hours to generate.

Validation of optimized heat exchanger performance

After generating the topology optimized designs with TOffee, we performed high fidelity conjugate heat transfer (CHT) simulations to calculate their performance.
A CHT simulation couples a computational fluid dynamics (CFD) simulation, which models the flow and the heat transfer in the two-fluid media with a heat conduction simulation to model the heat transfer in the solid. In this way, the performance of the heat exchanger can be predicted using a minimum of assumptions and the maximum of high-fidelity simulations.
In addition to performing analyses of the performance of the topology-optimized heat exchanger, we performed CHT analyses of conventional PCHX designs.

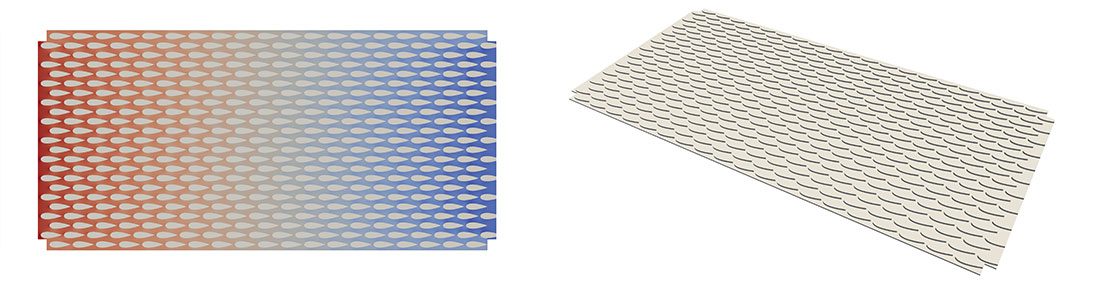

We judged that it was necessary to perform these expensive simulations instead of using one of the many correlations available in the scientific literature because the strong variability of results in the literature means that the applicability of the correlations is extremely limited. The extra simulation of the conventional design is the best way of providing a like-for-like comparison of results. The conventional design chosen to provide comparisons is a staggered-aerofoil design like that shown in Figure 4.

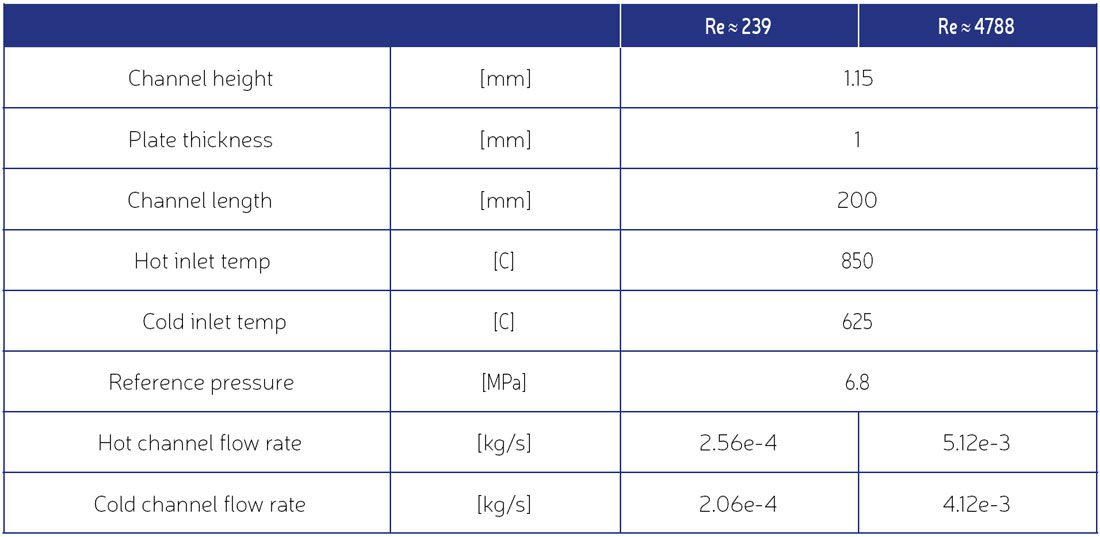

The performances of both the conventional and TO-designed PCHXs were analyzed under two different flow conditions, one a laminar condition and one a turbulent condition (PCHX geometry parameters and flow conditions provided in Table 1).
The fluid media were helium/helium while the solid medium was an Inconel alloy. The flow conditions were taken from Guillen et al., who used them to optimize conventional PCHX designs.

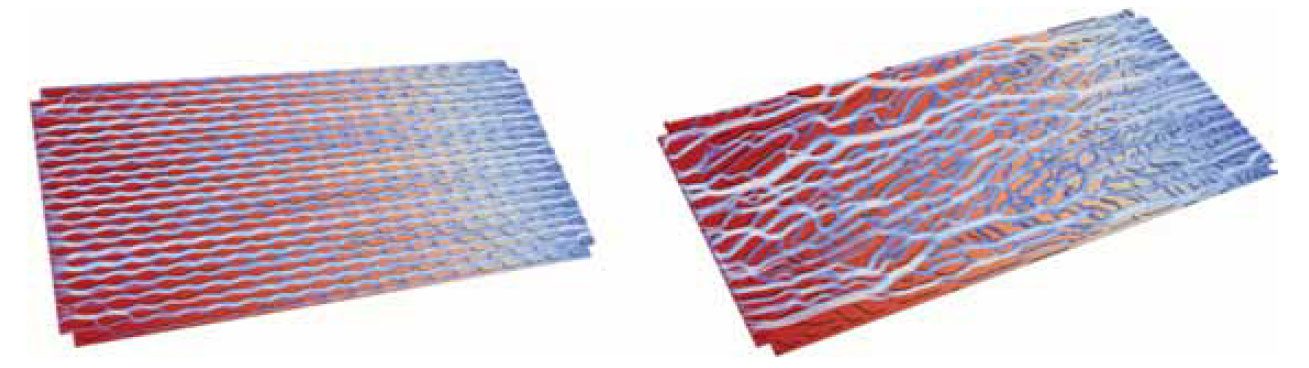

Turbulence was modeled using a kepsilon RANS model. Illustrative diagrams of temperature and velocity stream-lines for the counter-flow heat exchanger and conventional aerofoil heat exchanger are shown in Figure 5.
The heat transfer performance of the heat exchanger is quantified using the non-dimensional Nusselt number where h is the heat transfer coefficient, D_h is the hydraulic diameter of the heat exchanger, and k is the thermal conductivity of the fluid. The losses across the heat exchanger are quantified using the non-dimensional Fanning friction factor

where ∆p is the static pressure drop across the heat exchanger, L is the length of the heat exchanger, ρ is the fluid density, and u is the fluid velocity.
The Nusselt number represents the ratio of heat transfer by convection to heat transfer by conduction across the heat exchanger. Higher Nusselt numbers indicate more efficient heat exchangers.

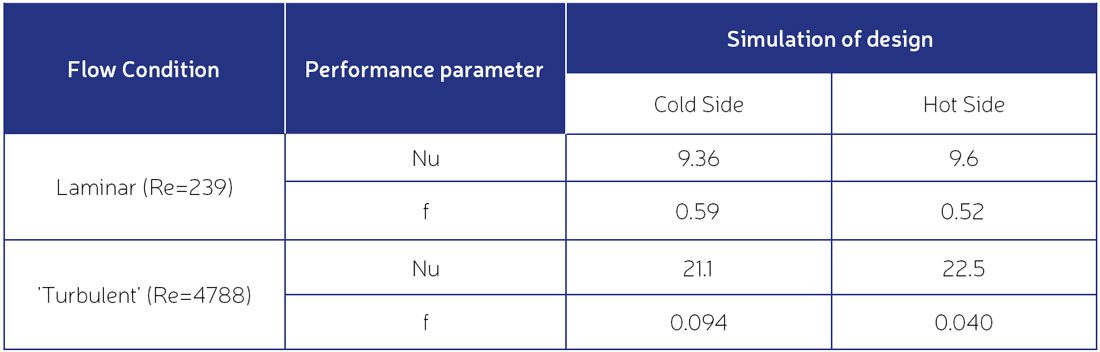

The Fanning friction factor represents a normalized pressure drop across the heat exchanger. Lower value indicate higher efficiency. The Nusselt and Fanning numbers for the TOffee counter-flow heat exchanger are shown in Table 2, while those of the aerofoil baseline are shown in Table 3.
The results show that the at low Reynolds numbers the TOffee heat exchanger has a 3% higher Nusselt number for an equivalent friction factor.
At high Reynolds numbers, the TOffee heat exchanger has an 8.5% higher Nusselt number for an only 4% higher Fanning number. These are significant gains in heat exchanger performance.
